Explosionproof Certified Bus Mode Gas Alarm Controller With 32G Standard SD Card Storage
Product Overview
The YT-1600H gas control panel can connect up to 132 gas detectors, enabling remote signal transmission; It can control electromagnetic valves, exhaust fans, motors, water pumps, sound and light alarms, sprinkler systems, mechanical equipment, etc. to achieve automated operations. It can achieveThe combination of remote monitoring and cloud monitoring facilitates users to conduct real-time and accurate management, and timely grasp the alarm status.
Product Advantage
Multiple operation modes, convenient for us

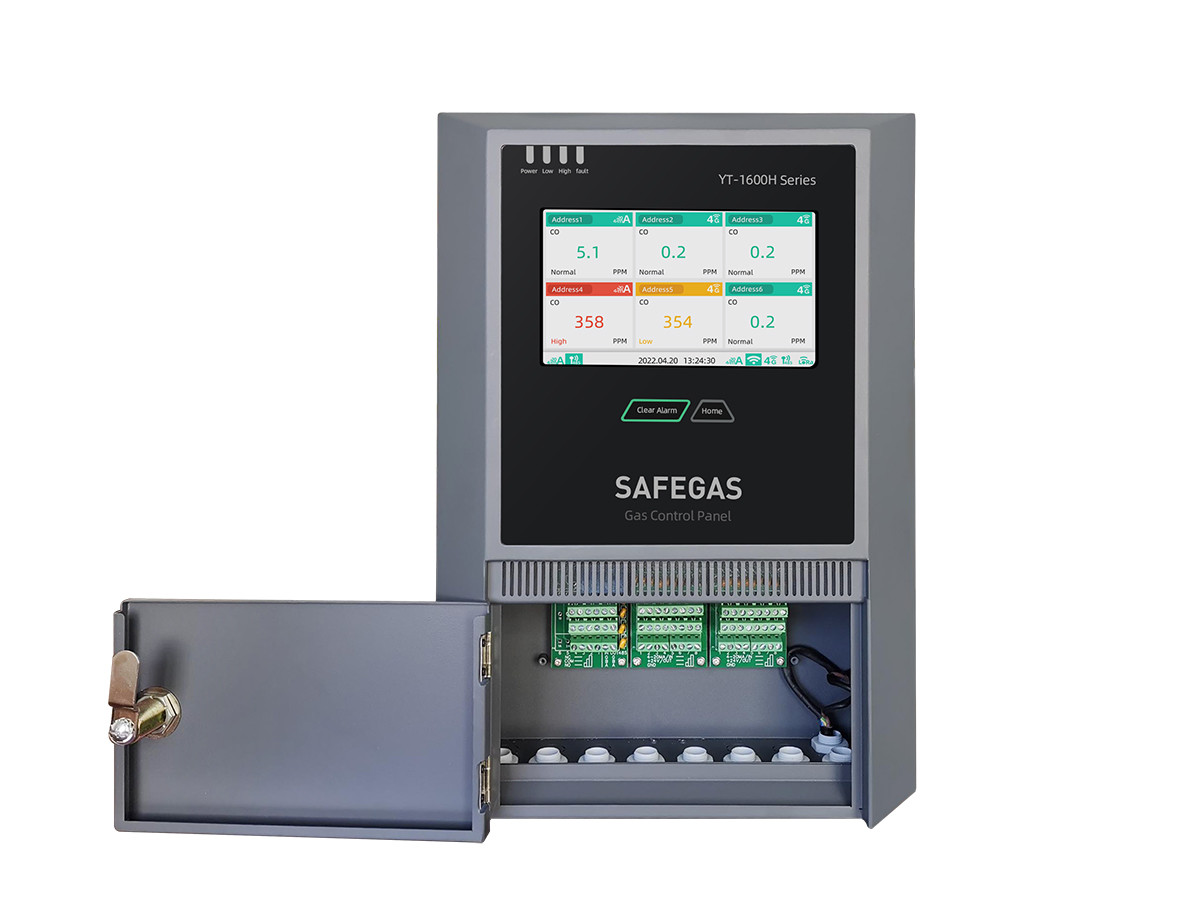

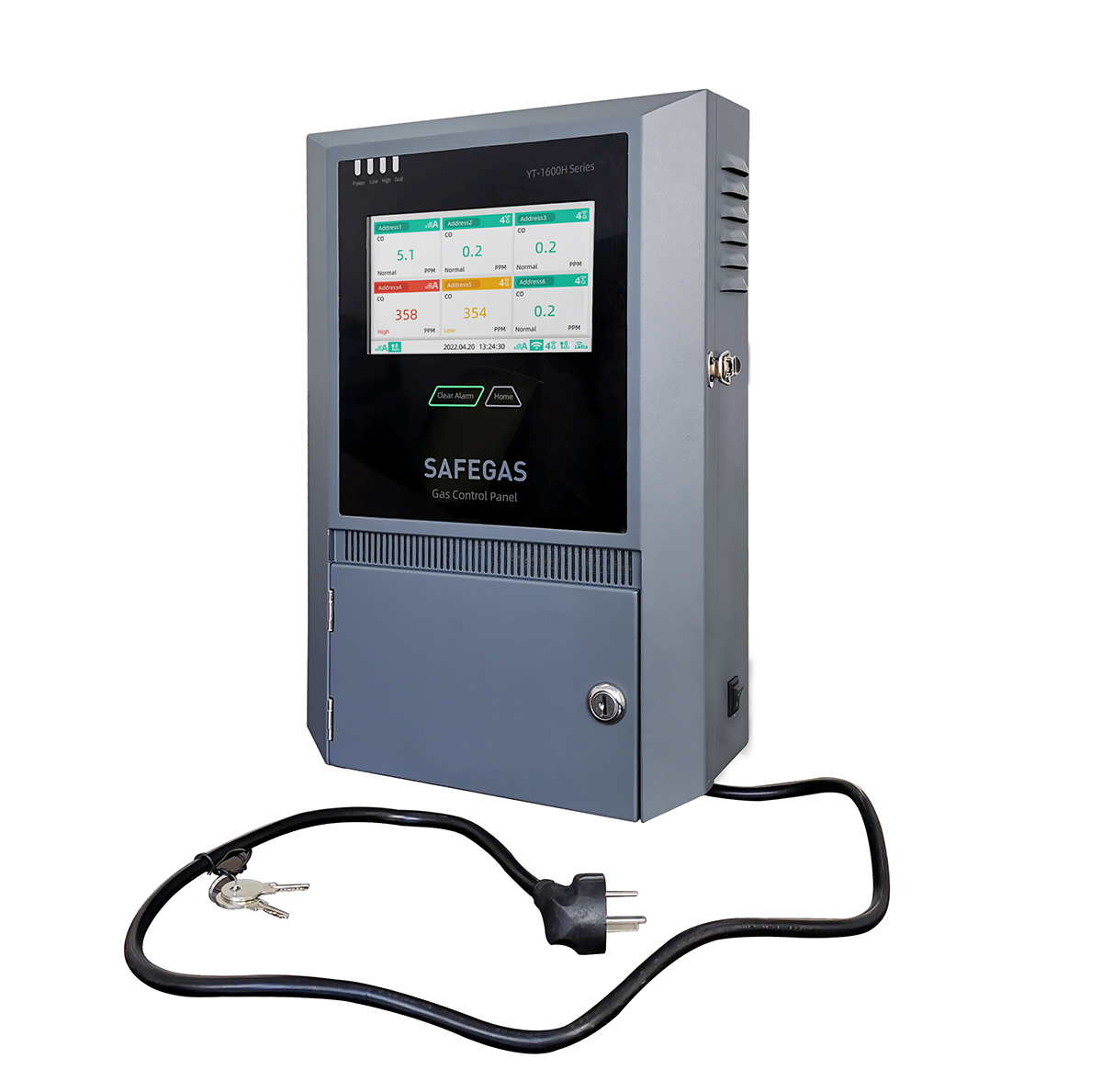

7-inch high-definition color screen display, capable of simultaneously supporting 2 key touch operations, as well as key operations

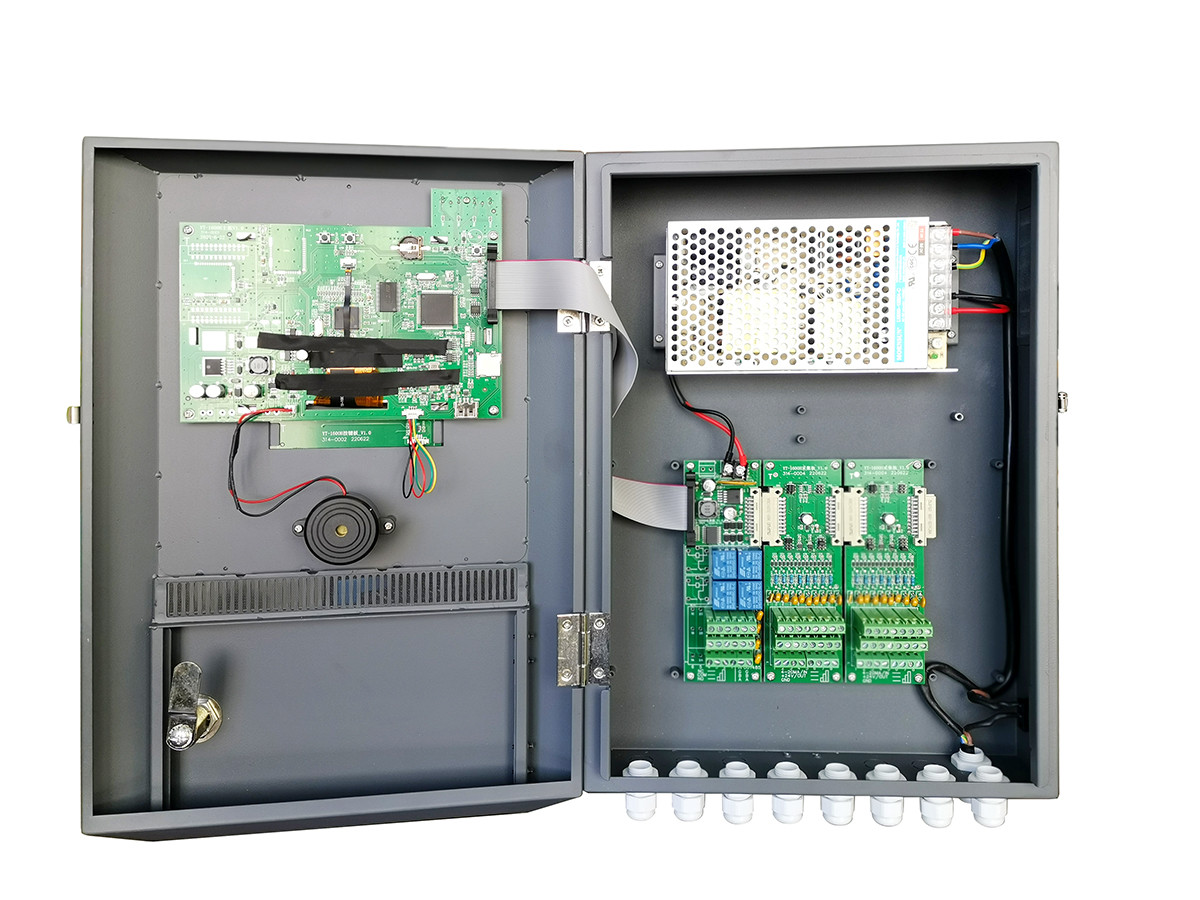

Modular design supports flexible custom configuration
·Standard RS485 signal input and output, capable of connecting up to 100 gas detectors
·Can support 4~20mA 8~32 signal acquisition inputs, and can connect up to 32 gas detectors (optional)
·Can support 16 channels of 4-20mA signal output (optional)
·Supports up to 6 relays, standard 4 relays, optional 2 relays
·Controllers can communicate with each other (optional)
Powerful data storage function, convenient for users to view historical data
·Standard configuration includes 1000 sets of alarm event and non event records. Users can view the standard SD card storage function on the controller, which can store 100000 pieces and can be customized with larger capacity
·The storage interval can be arbitrarily set, and time, real-time concentration values, alarm information, etc. can be recorded.
·Support SD card and USB flash drive for one click data export, making it easy for users to view or delete records
Specification
| Gas detected | CL2 |
| Detection principle | Electrochemical |
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) |
| Measure range | 0-10/20/50/100ppm |
| Resolution | 0.01ppm/0.1ppm |
| Precision | ± 1-3% FS |
| Signal output | 4-20mA, 1-5V, RS485, relay(optional) |
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |
Detail
Factory information
Shenzhen Yuante Technology Co., Ltd. was established in 2010 and is a company specializing in the design, production, and sales of high-end gas detection equipment and systems. It has a history of 16 years. We take "gas detectors" as our core product, targeting different industries such as petroleum, chemical, pharmaceutical, energy, environmental protection, electronics, municipal, agriculture and forestry, home appliances, etc., and have complete production lines and solutions. After nearly 10 years of rapid development, Safegas has become an influential supplier of gas detection equipment and systems both domestically and internationally.
Shenzhen Yuante is a group of industry experts with rich experience in the research and development, manufacturing, and investment of gas detectors. Shenzhen Yuante invests 5% of its annual revenue as a research and development fund. Selecting these new products, technologies, and services that meet market demands is the most important task for the R&D team.
In terms of manufacturing, we have independent production workshops, modern production equipment, aging rooms, calibration rooms, and professional employees.
In terms of marketing, we implement flexible and competitive pricing and diversified sales strategies. We penetrate the market through various methods such as OEM, ODM, agency, and direct sales to ensure the profit of every partner.
In terms of service, we provide users with 24/7 service, quick response, adequate technical guidance, and convenient maintenance. At present, the detector has passed ATEX CE EMC international certification, and the company has passed ISO9001-2015 quality management system certification.
FAQ
Q1:Are you a factory or a trading company?
We are a factory.
Q2: What is the payment method?
Credit card, wire transfer, Western Union remittance are all acceptable
Q3: Does your company accept customization?
We provide customized services for customers.
Q4: What is the shipping situation?
We will choose the appropriate transportation method based on the weight of the goods, usually arranging air freight, such as DHL, FEDEX, TNT, or UPS.
Q5:How is the after-sales service?
Various products have a warranty of 12 or 24 months.
Q6:What is your delivery time?
1-2 days after receiving the payment.
Q7: How is the correction situation?
We will calibrate using standard CO CL2 gas and provide you with a calibration certificate.
