High Precision Hydrogen Gas Meter Detector H2 For Leakage Detection CE ATEX

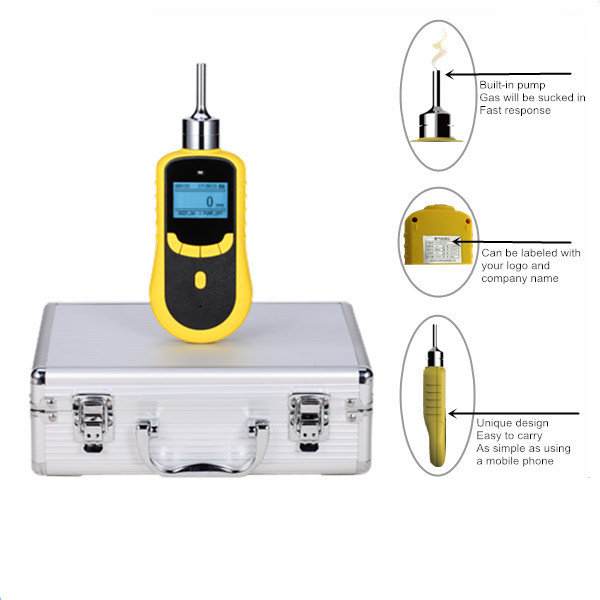

SKY2000 Hydrogen Gas Meter Detector is fast response and high accuracy gas detector. With built-in pump, fast sampling speed and high flow rate, ensuring the response time of the detector. Unique design, small size and easy to carry with. Special high intensity engineering plastics housing, suitable for different kinds of situation and environment. We dedicate to provide you the most reliable, accurate and the safest solution of gas detection.
Hydrogen Gas Meter Detector Specifications
| Gas Detected | H2 Hydrogen |
| Detection principle | Electrochemisty, Catalytic combustion, Thermal conductivity |
| Sampling Method | Pumping Suction |
| Measure Range | 0-10, 0-100, 0-500, 0-1000, 0-2000, 0-5000ppm, 0-10000, 0-40000ppm, 0-100%VOL, 0-100%LEL |
| Resolution | 0.001ppm, 0.1ppm, 1ppm, 0.01%VOL, 1%LEL |
| Precision | ≤± 2-3% F.S for normal sensor; 1%FS for high precision sensor |
| Signal Output | High-speed data transmission by USB, available for data downloading and
printing (optional function) |
| Charging Time | 4~6h | Working Time | 14-25h |
| Battery | 3.7V | Capacity | 2300mAh |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | II 2G Ex ia IIC T4 Ga IP66 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration | Housing Material | ABS+ leather case |
| Dimensions | 131*83*35mm | Weight | 240g |
Hydrogen Gas Meter Detector Characteristics
1. Employing original imported first-class brand sensor.
2. (optional) High speed data transmission by USB, which can download and print data.
3. LCD dot matrix display, the gas type, unit, concentration,
4. Local time can be showed on the screen.
5. Support Chinese and English operation, easy to shift.
6. The gas concentration unit PPM and mg/m3 can be shifted quickly. Built-in micro sampling pump, 10 grades of suction are available.
7. Explosion-proof certification, explosion-proof grade: II 2G Ex ia IIC T4 Ga IP66.
8. Monitor the specified gas concentration in environment and enclosed space and alarm.
9. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
10. One press to restore factory setting, free from the bother of mis-operation With temperature and pressure compensation, this is able to realize gas concentration compensation under conditions of different temperatures or pressures.
11. Two-stage alarm with sound and light, alarm point is settable.
12. Rechargeable lithium polymer battery of large capacity.
13. Employing pumping sampling method and the pumping suction is adjustable.
14. Special engineering plastics housing of high intensity, anti-skipping,
15. Water-proof, dust-proof, explosion-proof.
16. Elegant and exquisite aluminum alloy suitcase
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we are a professional Hydrogen Gas Meter Detector manufacturer with 16 years experiences.
Q2: What about the payment method?
A2: T/T, Western Union are available
Q3: Does your company accept customization?
A3: We do customizing service for customers.
Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.
Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for Hydrogen Gas Meter Detector.
Q6: How about the calibration certification?
A6: Before sending out, we will calibrate Hydrogen Gas Meter Detector with standard gas and provide you a calibration certification.
Company information:
Established in 2010, SHENZHEN YUANTE TECHNOLOGY CO.,LTD, is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector” as the core product, we have completed production line and solutions according to different industries, such as: Oil, Chemical, Medicine, Energy, Environment protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Safegas becomes the influential supplier for gas detection equipment and system in the domestic and overseas market.
Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 5% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.
For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.
For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.
For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance.
At present, detectors are with ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.
